Structural Steel Detailing
We turn the engineer’s structural drawings into the exact drawings a steel shop needs to cut, drill, weld, and erect the building frame.
From shop drawings and anchor bolt plans to erection drawings and connection coordination — we build steel packages that shops and field crews trust.
Market Focus
USA & Canada
Turnaround
24h RFQ review
Standards
AISC / CWB / AWS
Software
Model-Based IFC
Who this is for
Steel Fabricators
needing to outsource overflow detailing or secure shop drawings fast to keep shop operations moving.
General Contractors
looking for independent model coordination to identify structural conflicts early.
Design-Builders
requiring a technical desk to coordinate structural drawings with architectural intent.
What you receive
A package your shop, field, and estimator can use.
- 01
Review bid drawings, specifications, sketches, and available models.
- 02
Confirm steel scope, missing information, assumptions, and schedule pressure.
- 03

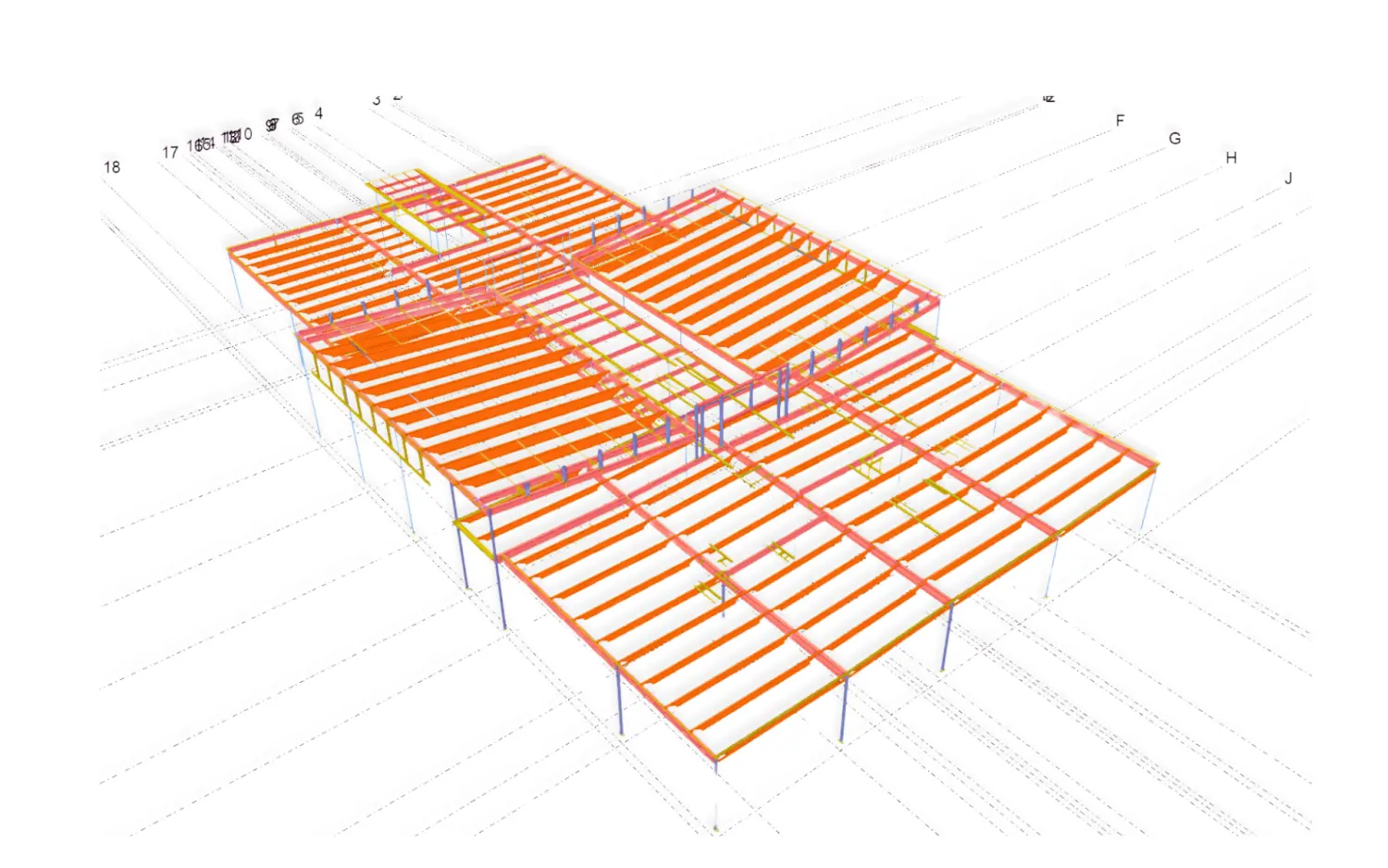

Develop model-based detailing, shop drawings, erection views, and lists.
- 04
Check marks, dimensions, connection notes, material lists, and revision history.
- 05
Issue the package for approval, fabrication, coordination, or field revision support.
- Shop Drawing PDFs
- Erection Framing Plans (PDF)
- Anchor Bolt Layouts (PDF)
- DSTV / NC CNC Files
- DXF Plate Files
- Assembly & Member BOM Lists
- IFC Model Reference
- Field & Shop Bolt Quantities
Common questions
Asked by fabricators and GCs.
What standards do you apply for US projects?+
We detail and draft structural steel components according to the AISC Code of Standard Practice (AISC 303) and AWS D1.1 structural welding references. Weld specifications, bolt tolerances, and framing offsets are adjusted per local and regional codes.
Do you detail miscellaneous items in the same package?+
Yes. If structural steel and miscellaneous items (stairs, handrails, embeds) are part of a unified bid package, we coordinate and detail both so the shop receives a coordinated release package.
How fast can you review an RFQ package?+
We review complete design drawings and project scope documents within 24 hours (or 1 business day). Large projects or packages with missing documents can take slightly longer to coordinate.
What CNC output files can you provide?+
We generate industry-standard DSTV (.nc) files for CNC drill lines, DXF files for plasma cutters, and XML/KSS data files for fabricator ERP integration.
Do you coordinate with the Engineer of Record (EOR)?+
Yes. We raise clear, well-referenced RFIs during the modeling phase to resolve design discrepancies and coordinate connections directly with the project engineering team.
